The Drafting Palette in TurboCAD ® is a cornerstone tool for creating detailed, professional 2D drawings from 3D models. It keeps your designs accurate by automatically updating views, sections, and details whenever your 3D model changes—even when working with external references (XREFs). This functionality eliminates the need for manual updates, saving time and reducing errors.
For mechanical design, the ,Drafting Paletteenables the creation of standard views, such as 2D or 3D sections and detailed views, either by selection or derived from existing views. Dimensions for solid model objects are associative, meaning they adjust and scale automatically as the model evolves. Geometry recognition allows individual parts to be customized with unique hatching, line styles, or colors, giving you clear and precise control over the presentation of your drawings.
In architectural design, the Drafting Palette works effortlessly with 3D models from applications like SketchUp® (SKP), Rhinoceros® (3DM), and AutoCAD Architecture® (DWG). It allows you to generate floor plans, elevations, sections, and detailed views that remain connected to the original model. These views update automatically to reflect any changes to the design. Sections can be fully customized with different hatches, colors, and line weights, as well as controls for visible and hidden lines. The section line depth setting provides further precision for creating highly detailed designs.
The Drafting Palette includes advanced tools for managing sectional views. When working with Aligned Sectional Views, the cutting plane is clearly displayed, letting you see exactly which part of the model is being represented. This visual cue provides an intuitive way to understand the internal structure being shown. In addition, sectional views are named to match their corresponding cutting lines. This direct link between View Lines and Aligned Sectional Views simplifies organization, making it easy to identify and reference specific sections of your design.
Cutting Plane shown when Aligned Sectional View is selected
For large projects with multiple sections, elevations, and views, the Drafting Palette allows you to lock individual items or the entire palette to temporarily pause updates. This feature is particularly useful when working with complex models, enabling you to continue designing without delays. You can refresh updates later, either individually or across all items, as needed.

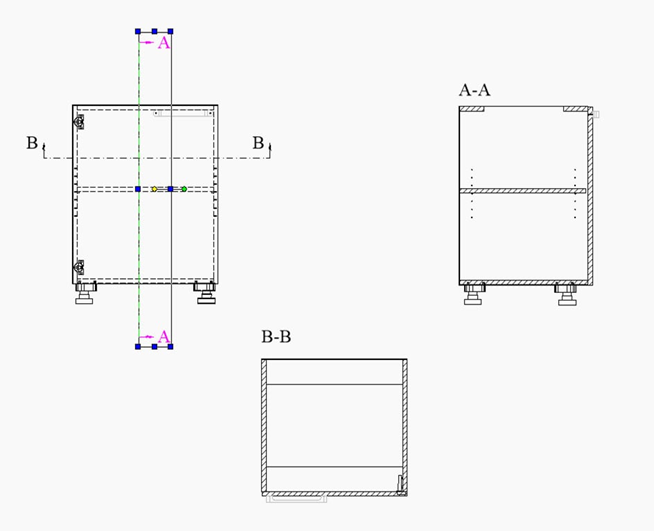

Naming of Aligned Sectional Views
With its ability to handle a wide range of file formats, such as SAT, IGES, STEP, SketchUp®, and AutoCAD®, the Drafting Palette supports collaboration across different design software. Whether you're just starting out or an experienced professional, this feature makes it easier to produce accurate, polished, and professional-quality drawings.
